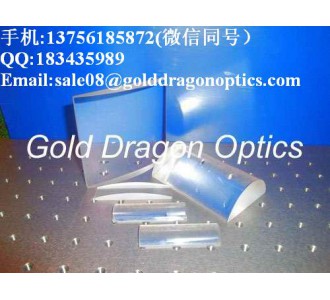

平凸柱面鏡
我公司能夠生產多種規格、半徑、基底材料不同的平凸柱面鏡、平凹柱面鏡、雙凸柱面鏡、雙凹柱面鏡、彎月柱面鏡等普通柱面鏡。
也可以加工特殊柱面鏡如：消色差柱面鏡、拋物柱面鏡、柱面橢球鏡和雙曲面柱面鏡等非球面柱面鏡及柱面鏡組。
材料：各種火石玻璃、紫外熔石英、紅外熔石英等光學玻璃以及氟化鈣(CaF2)、鍺(Ge)、硒化鋅(ZnSe)、硅(Si)等光學晶體材料
焦距： 5mm — 1000mm±1%( 德國 TIROPTICS OPTOMATIC2000 測試 )
長度： 2mm — 300mm±0.1mm
寬度： 2mm — 150mm±0.1mm
中心厚度公差： ±0.2mm
中心偏差： 3 — 5 分
表面精度： λ/2
表面質量： 60/40
有效口徑： 90%
鍍 膜： 按客戶需求可進行鍍膜
另外，我們有上千余種的標準產品，并有部分標準產品的庫存滿足您的需要
K9平凸柱面透鏡
材 料:H-K9L
設計波長:587.6nm
焦距公差:±1%
外形公差:+0.0/-0.1mm
厚度公差:±0.2mm
面 型:λ/2@632.8n
光 潔 度:60-40
偏 心:<3'
有效孔徑:>90%
倒 邊:<0.2×45°
鍍 膜:多層增透膜
A:350-650nm
B:650-1050nm
C:1050-1580nm

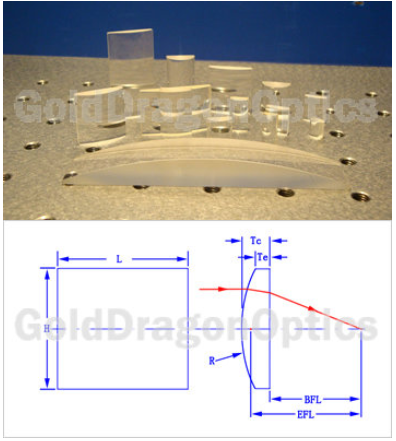

K9平凸柱面透鏡 (尺寸及鍍膜可按用戶需求定制)單位(mm)
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21J1598L1S |
3.90 |
6.00 |
4.00 |
2.02 |
3.80 |
2.00 |
1.39 |
| 21J1598L2S |
3.90 |
8.00 |
4.00 |
2.02 |
3.80 |
2.00 |
1.39 |
| 21J1310L1S |
4.00 |
6.00 |
4.00 |
2.07 |
3.56 |
2.00 |
1.65 |
| 21J1310L2S |
4.00 |
8.00 |
4.00 |
2.07 |
3.56 |
2.00 |
1.65 |
| 21J1918L1S |
5.80 |
6.00 |
4.00 |
3.00 |
2.76 |
2.00 |
3.98 |
| 21J1918L2S |
5.80 |
8.00 |
4.00 |
3.00 |
2.76 |
2.00 |
3.98 |
| 21J1227L1S |
6.35 |
8.00 |
6.00 |
3.28 |
3.95 |
2.00 |
3.75 |
| 21J1227L2S |
6.35 |
12.00 |
6.00 |
3.28 |
3.95 |
2.00 |
3.75 |
| 21J1874L1S |
7.70 |
9.00 |
7.00 |
3.98 |
4.09 |
2.00 |
5.00 |
| 21J1874L2S |
7.70 |
14.00 |
7.00 |
3.98 |
4.09 |
2.00 |
5.00 |
| 21J1822L1S |
9.70 |
12.00 |
10.00 |
5.01 |
6.69 |
2.00 |
5.29 |
| 21J1822L2S |
9.70 |
20.00 |
10.00 |
5.01 |
6.69 |
2.00 |
5.29 |
| 21J1878L1S |
10.00 |
12.00 |
10.00 |
5.17 |
5.88 |
2.00 |
6.12 |
| 21J1878L2S |
10.00 |
20.00 |
10.00 |
5.17 |
5.88 |
2.00 |
6.12 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21J1942L1S |
12.70 |
12.00 |
10.00 |
6.56 |
4.31 |
2.00 |
9.86 |
| 21J1942L2S |
12.70 |
20.00 |
10.00 |
6.56 |
4.31 |
2.00 |
9.86 |
| 21J1805L1S |
12.70 |
15.00 |
13.00 |
6.56 |
7.67 |
2.00 |
7.64 |
| 21J1805L2S |
12.70 |
26.00 |
13.00 |
6.56 |
7.67 |
2.00 |
7.64 |
| 21J1909L1S |
13.70 |
15.00 |
13.00 |
7.08 |
6.27 |
2.00 |
9.57 |
| 21J1909L2S |
13.70 |
26.00 |
13.00 |
7.08 |
6.27 |
2.00 |
9.57 |
| 21J1636L1S |
15.00 |
12.00 |
10.00 |
7.75 |
3.82 |
2.00 |
12.48 |
| 21J1636L2S |
15.00 |
20.00 |
10.00 |
7.75 |
3.82 |
2.00 |
12.48 |
| 21J1095L1S |
19.00 |
18.00 |
16.00 |
9.82 |
6.13 |
2.00 |
14.96 |
| 21J1095L2S |
19.00 |
32.00 |
16.00 |
9.82 |
6.13 |
2.00 |
14.96 |
| 21J1155L1S |
19.70 |
18.00 |
16.00 |
10.18 |
5.88 |
2.00 |
15.82 |
| 21J1155L2S |
19.70 |
32.00 |
16.00 |
10.18 |
5.88 |
2.00 |
15.82 |
| 21J1960L1S |
20.00 |
12.00 |
10.00 |
10.34 |
3.29 |
2.00 |
17.83 |
| 21J1960L2S |
20.00 |
20.00 |
10.00 |
10.34 |
3.29 |
2.00 |
17.83 |
| 21J1328L1S |
20.00 |
17.00 |
15.00 |
10.34 |
5.22 |
2.00 |
16.56 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21J1328L2S |
20.00 |
30.00 |
15.00 |
10.34 |
5.22 |
2.00 |
16.56 |
| 21J1638L1S |
22.20 |
15.00 |
12.50 |
11.47 |
3.85 |
2.00 |
19.66 |
| 21J1638L2S |
22.20 |
25.00 |
12.50 |
11.47 |
3.85 |
2.00 |
19.66 |
| 21J1810L1S |
25.00 |
12.00 |
10.00 |
12.92 |
3.00 |
2.00 |
23.02 |
| 21J1810L2S |
25.00 |
20.00 |
10.00 |
12.92 |
3.00 |
2.00 |
23.02 |
| 21J1075L1S |
25.00 |
22.00 |
20.00 |
12.92 |
6.74 |
2.00 |
20.56 |
| 21J1075L2S |
25.00 |
40.00 |
20.00 |
12.92 |
6.74 |
2.00 |
20.56 |
| 21J1014L1S |
25.40 |
18.00 |
16.00 |
13.13 |
4.72 |
2.00 |
22.29 |
| 21J1014L2S |
25.40 |
32.00 |
16.00 |
13.13 |
4.72 |
2.00 |
22.29 |
| 21J1622L1S |
25.40 |
28.00 |
25.40 |
13.13 |
11.82 |
2.00 |
17.61 |
| 21J1622L2S |
25.40 |
51.00 |
25.40 |
13.13 |
11.82 |
2.00 |
17.61 |
| 21J1212L1S |
30.00 |
22.00 |
20.00 |
15.50 |
5.65 |
2.00 |
26.28 |
| 21J1212L2S |
30.00 |
40.00 |
20.00 |
15.50 |
5.65 |
2.00 |
26.28 |
| 21J1765L1S |
38.10 |
28.00 |
25.40 |
19.69 |
6.64 |
2.00 |
33.72 |
| 21J1765L2S |
38.10 |
51.00 |
25.40 |
19.69 |
6.64 |
2.00 |
33.72 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21J1402L1S |
40.00 |
12.00 |
10.00 |
20.67 |
2.61 |
2.00 |
38.28 |
| 21J1402L2S |
40.00 |
20.00 |
10.00 |
20.67 |
2.61 |
2.00 |
38.28 |
| 21J1125L1S |
40.00 |
22.00 |
20.00 |
20.67 |
4.57 |
2.00 |
36.99 |
| 21J1125L2S |
40.00 |
40.00 |
20.00 |
20.67 |
4.57 |
2.00 |
36.99 |
| 21J1821L1S |
50.00 |
22.00 |
20.00 |
25.84 |
4.01 |
2.00 |
47.36 |
| 21J1821L2S |
50.00 |
40.00 |
20.00 |
25.84 |
4.01 |
2.00 |
47.36 |
| 21J1695L1S |
50.00 |
32.00 |
30.00 |
25.84 |
6.80 |
2.00 |
45.52 |
| 21J1695L2S |
50.00 |
60.00 |
30.00 |
25.84 |
6.80 |
2.00 |
45.52 |
| 21J1728L1S |
50.80 |
53.00 |
50.80 |
26.25 |
21.62 |
2.00 |
36.55 |
| 21J1728L2S |
50.80 |
90.00 |
50.80 |
26.25 |
21.62 |
2.00 |
36.55 |
| 21J1430L1S |
60.00 |
32.00 |
30.00 |
31.01 |
5.87 |
2.00 |
56.13 |
| 21J1430L2S |
60.00 |
60.00 |
30.00 |
31.01 |
5.87 |
2.00 |
56.13 |
| 21J1036L1S |
60.00 |
62.00 |
60.00 |
31.01 |
25.18 |
2.00 |
43.40 |
| 21J1036L2S |
60.00 |
95.00 |
60.00 |
31.01 |
25.18 |
2.00 |
43.40 |
| 21J1993L1S |
62.90 |
53.00 |
50.80 |
32.51 |
14.22 |
2.00 |
53.52 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21J1993L2S |
62.90 |
95.00 |
50.80 |
32.51 |
14.22 |
2.00 |
53.52 |
| 21J1477L1S |
70.00 |
32.00 |
30.00 |
36.18 |
5.25 |
2.00 |
66.54 |
| 21J1477L2S |
70.00 |
60.00 |
30.00 |
36.18 |
5.25 |
2.00 |
66.54 |
| 21J1703L1S |
75.00 |
53.00 |
50.80 |
38.76 |
11.48 |
2.00 |
67.43 |
| 21J1703L2S |
75.00 |
95.00 |
50.80 |
38.76 |
11.48 |
2.00 |
67.43 |
| 21J1054L1S |
75.60 |
28.00 |
25.40 |
39.07 |
5.12 |
3.00 |
72.22 |
| 21J1054L2S |
75.60 |
51.00 |
25.40 |
39.07 |
5.12 |
3.00 |
72.22 |
| 21J1258L1S |
75.60 |
53.00 |
50.80 |
39.07 |
12.38 |
3.00 |
67.44 |
| 21J1258L2S |
75.60 |
95.00 |
50.80 |
39.07 |
12.38 |
3.00 |
67.44 |
| 21J1105L1S |
80.00 |
22.00 |
20.00 |
41.34 |
4.22 |
3.00 |
77.22 |
| 21J1105L2S |
80.00 |
40.00 |
20.00 |
41.34 |
4.22 |
3.00 |
77.22 |
| 21J1520L1S |
80.00 |
82.00 |
80.00 |
41.34 |
33.89 |
3.00 |
57.66 |
| 21J1520L2S |
80.00 |
145.00 |
80.00 |
41.34 |
33.89 |
3.00 |
57.66 |
| 21J1567L1S |
100.00 |
32.00 |
30.00 |
51.68 |
5.22 |
3.00 |
96.56 |
| 21J1567L2S |
100.00 |
60.00 |
30.00 |
51.68 |
5.22 |
3.00 |
96.56 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21J1268L1S |
100.00 |
90.00 |
100.00 |
51.68 |
41.63 |
3.00 |
72.55 |
| 21J1268L2S |
100.00 |
145.00 |
100.00 |
51.68 |
41.63 |
3.00 |
72.55 |
| 21J1640L1S |
130.00 |
32.00 |
30.00 |
67.18 |
4.69 |
3.00 |
126.91 |
| 21J1640L2S |
130.00 |
60.00 |
30.00 |
67.18 |
4.69 |
3.00 |
126.91 |
| 21J1934L1S |
150.00 |
22.00 |
20.00 |
77.52 |
3.64 |
3.00 |
147.60 |
| 21J1934L2S |
150.00 |
40.00 |
20.00 |
77.52 |
3.64 |
3.00 |
147.60 |
| 21J1629L1S |
150.00 |
32.00 |
30.00 |
77.52 |
4.46 |
3.00 |
147.06 |
| 21J1629L2S |
150.00 |
60.00 |
30.00 |
77.52 |
4.46 |
3.00 |
147.06 |
| 21J1895L1S |
150.00 |
90.00 |
100.00 |
77.52 |
21.28 |
3.00 |
135.97 |
| 21J1895L2S |
150.00 |
145.00 |
100.00 |
77.52 |
21.28 |
3.00 |
135.97 |
| 21J1653L1S |
200.00 |
32.00 |
30.00 |
103.36 |
4.09 |
3.00 |
197.30 |
| 21J1653L2S |
200.00 |
60.00 |
30.00 |
103.36 |
4.09 |
3.00 |
197.30 |
| 21J1309L1S |
200.00 |
90.00 |
100.00 |
103.36 |
15.89 |
3.00 |
189.52 |
| 21J1309L2S |
200.00 |
145.00 |
100.00 |
103.36 |
15.89 |
3.00 |
189.52 |
| 21J1277L1S |
250.00 |
22.00 |
20.00 |
129.20 |
3.38 |
3.00 |
247.77 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21J1277L2S |
250.00 |
40.00 |
20.00 |
129.20 |
3.38 |
3.00 |
247.77 |
| 21J1267L1S |
250.00 |
62.00 |
60.00 |
129.20 |
6.53 |
3.00 |
245.69 |
| 21J1267L2S |
250.00 |
95.00 |
60.00 |
129.20 |
6.53 |
3.00 |
245.69 |
| 21J1558L1S |
300.00 |
32.00 |
30.00 |
155.04 |
3.72 |
3.00 |
297.55 |
| 21J1558L2S |
300.00 |
60.00 |
30.00 |
155.04 |
3.72 |
3.00 |
297.55 |
| 21J1996L1S |
300.00 |
62.00 |
60.00 |
155.04 |
5.93 |
3.00 |
296.09 |
| 21J1996L2S |
300.00 |
95.00 |
60.00 |
155.04 |
5.93 |
3.00 |
296.09 |
| 21J1363L1S |
400.00 |
32.00 |
30.00 |
206.72 |
3.54 |
3.00 |
397.67 |
| 21J1363L2S |
400.00 |
60.00 |
30.00 |
206.72 |
3.54 |
3.00 |
397.67 |
| 21J1144L1S |
500.00 |
32.00 |
30.00 |
258.40 |
3.43 |
3.00 |
497.74 |
| 21J1144L2S |
500.00 |
60.00 |
30.00 |
258.40 |
3.43 |
3.00 |
497.74 |
| 21J1836L1S |
700.00 |
32.00 |
30.00 |
361.76 |
3.31 |
3.00 |
697.82 |
| 21J1836L2S |
700.00 |
60.00 |
30.00 |
361.76 |
3.31 |
3.00 |
697.82 |
| 21J1516L1S |
1000.00 |
32.00 |
30.00 |
516.80 |
3.21 |
3.00 |
997.88 |
| 21J1516L2S |
1000.00 |
60.00 |
30.00 |
516.80 |
3.21 |
3.00 |
997.88 |
?
